Welcome to this series of tutorials, which teaches you the basic tools and techniques of StudioCraft for InDesign. This tutorial introduces you to Image Tagging - Resize/Scale By
Get files Sample file to practice with (ZIP, 29.9 MB)
| Function | Option | Description |

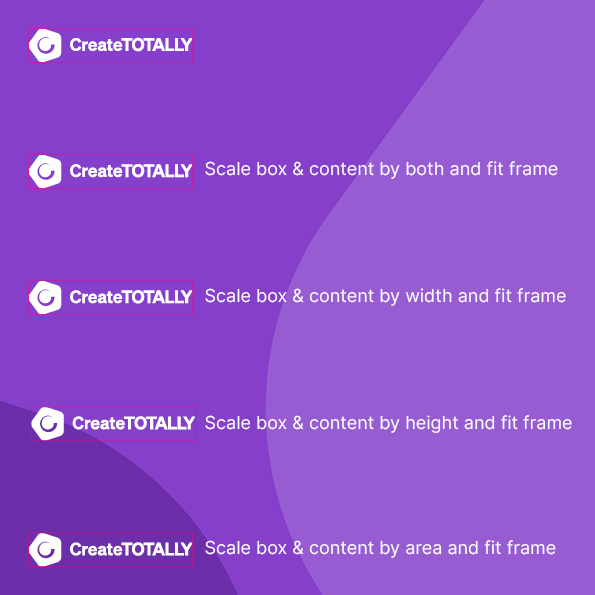

| Resize/Scale By | Both | The image box will resize in both height & width when it re-sizes. |
| Width | The image box will resize in width only when it re-sizes. | |
| Height | The image box will resize in height only when it re-sizes. | |
| Area | The image box will resize by area when it re-sizes. |
What you learned: How to use Resize/Scale By to resize image frame and content
Learn how to resize images by using the Resize/Scale By tagging to resize images such as a logo.
Use Resize/Scale By to resize image frame and content
- Open the Pages Items Panel (CreateTOTALLY > Pages Items Panel) and select the image on the page you wish to resize.
- Click the New button at the bottom of the Pages Item Panel to open the Tags dialog box.

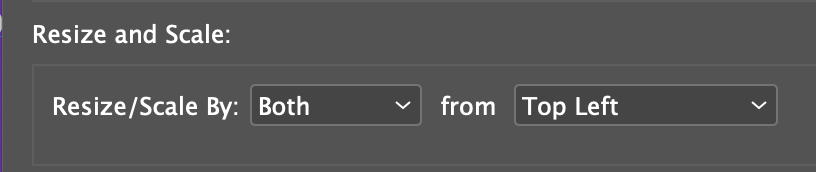

- Choose Resize and Scale > Resize/Scale By.
- Use the dropdown to select from the following resize options: Both, Width, Height and Area.
- Use the dropdown to select from the following position options: Top, Top Left, Top Right, Bottom, Bottom Left, and Bottom Right.
- You can also use the checkbox Fit Frame: which will fit frame to content after resize
- Click the OK button to save your Tags and close Tags dialog box.
