Welcome to this series of tutorials, which teaches you the basic tools and techniques of StudioCraft for InDesign. This tutorial introduces you to Image Tagging - Behaviour: Lock Edge
Get files Sample file to practice with (ZIP, 29.9 MB)
Behaviour options
These allow you to define how ..
| Function | Option | Description |
| Lock edge | Top | The top of the image box will stay the same distance from the top of the edge of the page as it currently is when it re-sizes. |
| Left | The left of the image box will stay the same distance from the left of the edge of the page as it currently is when it re-sizes. | |
| Bottom | The bottom of the image box will stay the same distance from the bottom of the edge of the page as it currently is when it re-sizes. | |
| Right | The right of the image box will stay the same distance from the right of the edge of the page as it currently is when it re-sizes. |
What you learned: How to use lock edge to position content

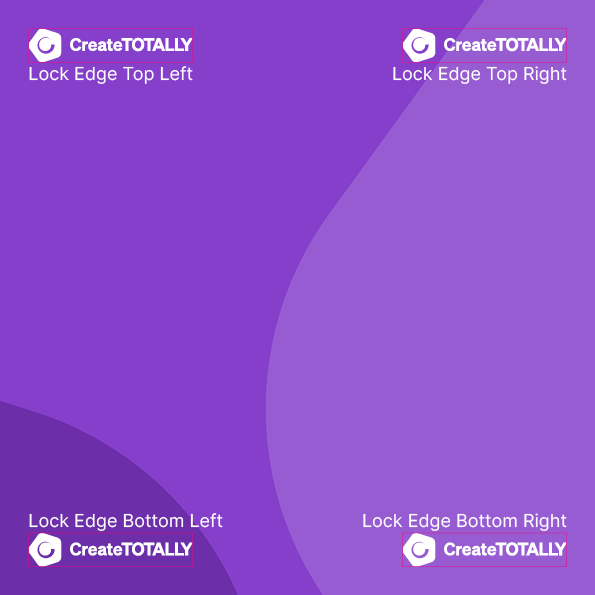

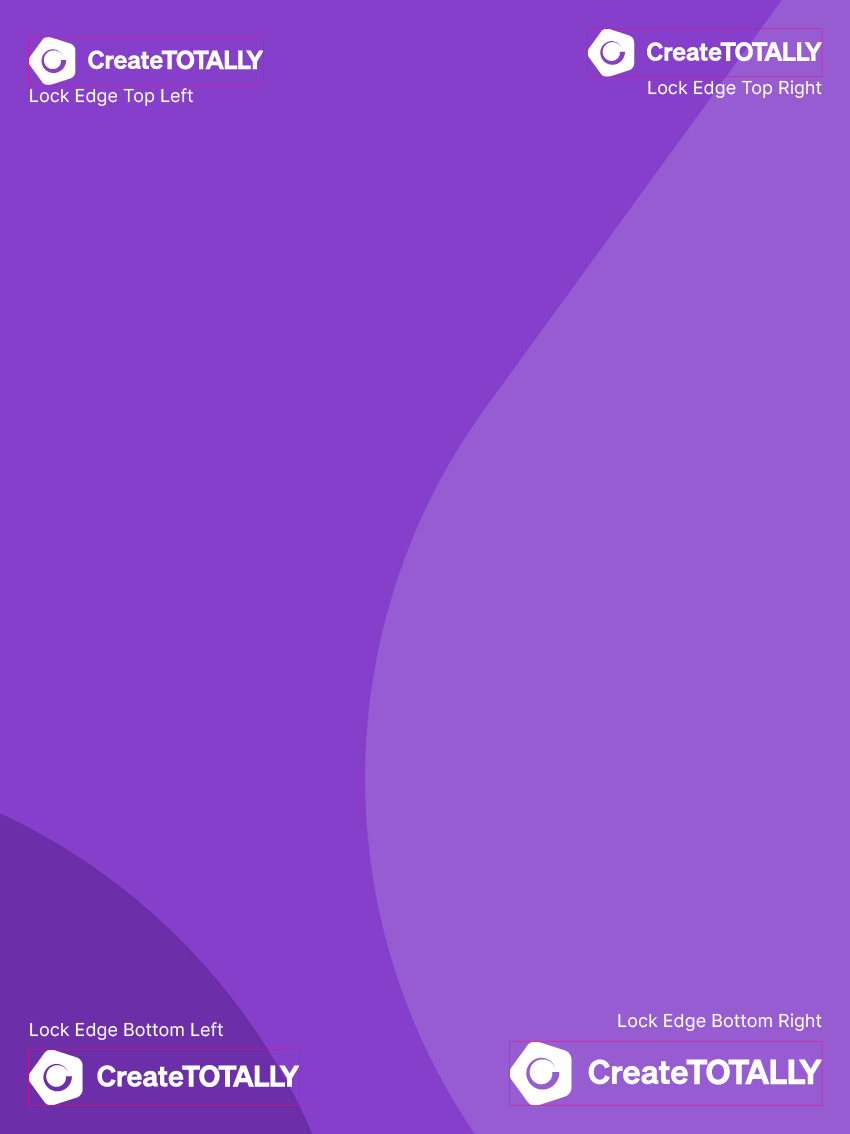

Learn how to align content by using the Lock Edge tagging to position images such as a logo.
Use Lock Edge to position content
- Open the Pages Items Panel (CreateTOTALLY > Pages Items Panel) and select the image on the page you wish to align.
- Click the New button at the bottom of the Pages Item Panel to open the Tags dialog box.
- Choose Behaviour > Lock Edge.

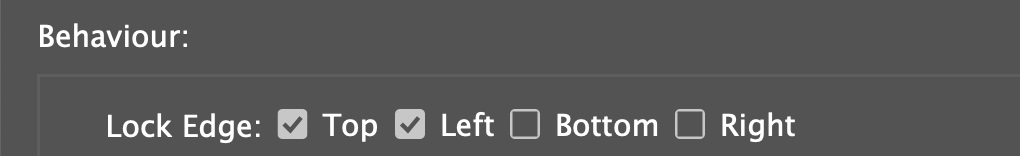

- Use the checkboxes to select the following options: Top, Top Left, Top Right, Bottom, Bottom Left, and Bottom Right.
- Click the OK button to save your Tags and close Tags dialog box.
