Welcome to this series of tutorials, which teaches you the basic tools and techniques of StudioCraft for InDesign. This tutorial introduces you to Image Tagging - Behaviour: Snap to Margin
Get files Sample file to practice with (ZIP, 29.9 MB)
| Function | Option | Description |
| Snap to page margin | Top | The image will re-size and then the top edge of the image box will snap (grow) to the top of the page margin. |
| Top left | The image will re-size and then the top left corner of the image box will snap (grow) to the top left of the page margin. | |
| Top right | The image will re-size and then the top right corner of the image box will snap (grow) to the top right of the page margin. | |
| Bottom | The image will re-size and then the bottom edge of the image box will snap (grow) to the top of the page margin. | |
|
Bottom left |
The image will re-size and then the bottom left corner of the image box will snap (grow) to the bottom left of the page margin. | |
| Bottom right | The image will re-size and then the bottom right corner of the image box will snap (grow) to the bottom right of the page margin. | |
| Left | The image will re-size and then the left edge of the image box will snap (grow) to the left of the page margin. | |
| Right | The image will re-size and then the right edge of the image box will snap (grow) to the right of the page margin. |
What you learned: How to align content to margins

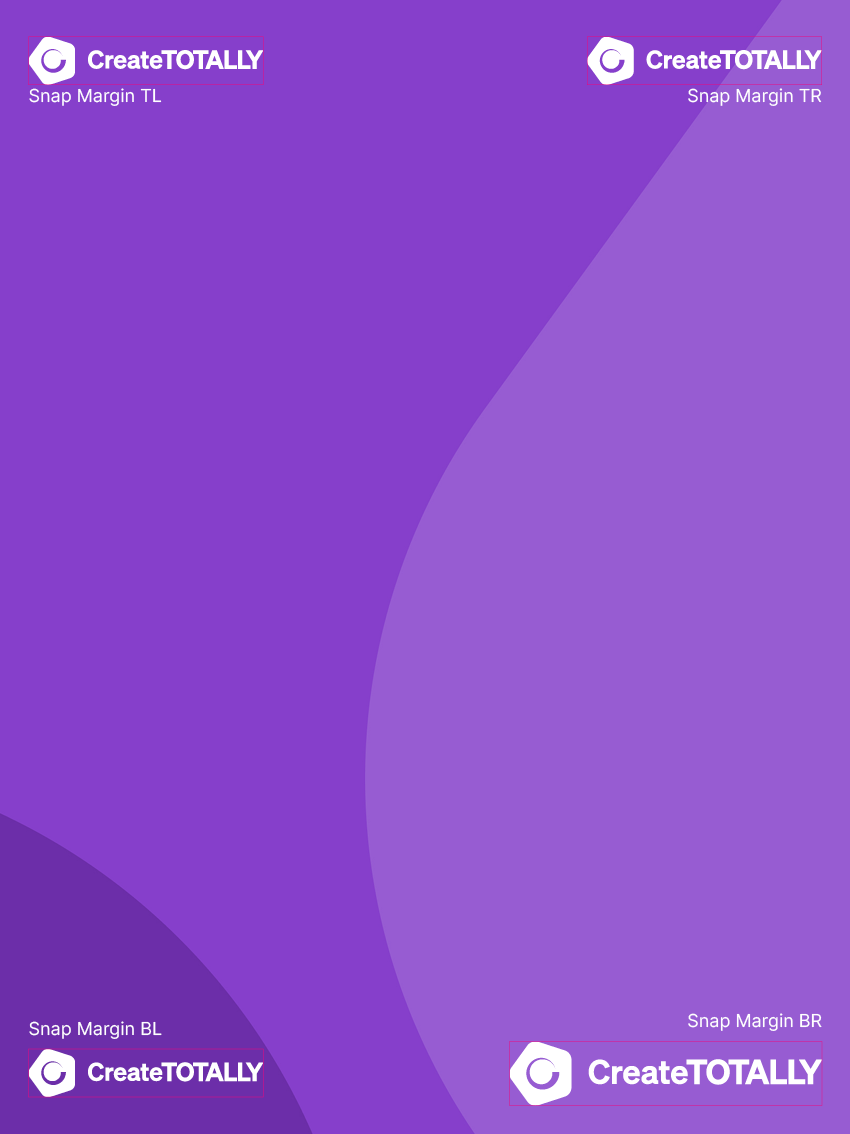

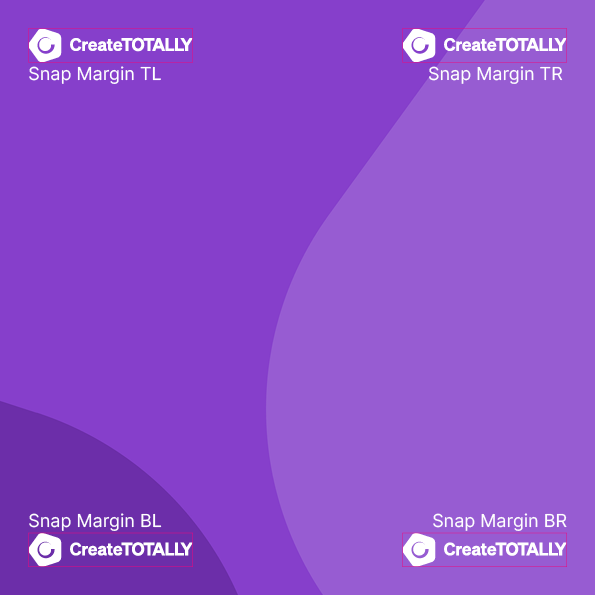

Learn how to align content by using the Snap to Margin tagging to position images such as a logo.
Use margins to position content
- Open the Pages Items Panel (CreateTOTALLY > Pages Items Panel) and select the image on the page you wish to align.
- Click the New button at the bottom of the Pages Item Panel to open the Tags dialog box.
- Choose Behaviour > Snap to Margin.
- Select from the dropdown the following options: Top, Top Left, Top Right, Bottom, Bottom Left, and Bottom Right Margins.
- Click the OK button to save your Tags and close Tags dialog box.
