Welcome to this series of tutorials, which teaches you the basic tools and techniques of StudioCraft for InDesign. This tutorial introduces you to Text Tagging - Behaviour: Lock Edge
Get files Sample file to practice with (ZIP, 29.9 MB)
Create a new document
Learn how to make a new document.
| Function | Option | Description |
| Lock edge | Top | The top of the text box will stay the same distance from the top of the edge of the page as it currently is when it re-sizes. |
| Left | The left of the text box will stay the same distance from the left of the edge of the page as it currently is when it re-sizes. | |
| Bottom | The bottom of the text box will stay the same distance from the bottom of the edge of the page as it currently is when it re-sizes. | |
| Right | The right of the text box will stay the same distance from the right of the edge of the page as it currently is when it re-sizes. |
What you learned: How to use lock edge to position content
Learn how to align content by using the Lock Edge tagging to position text such as legal copy.

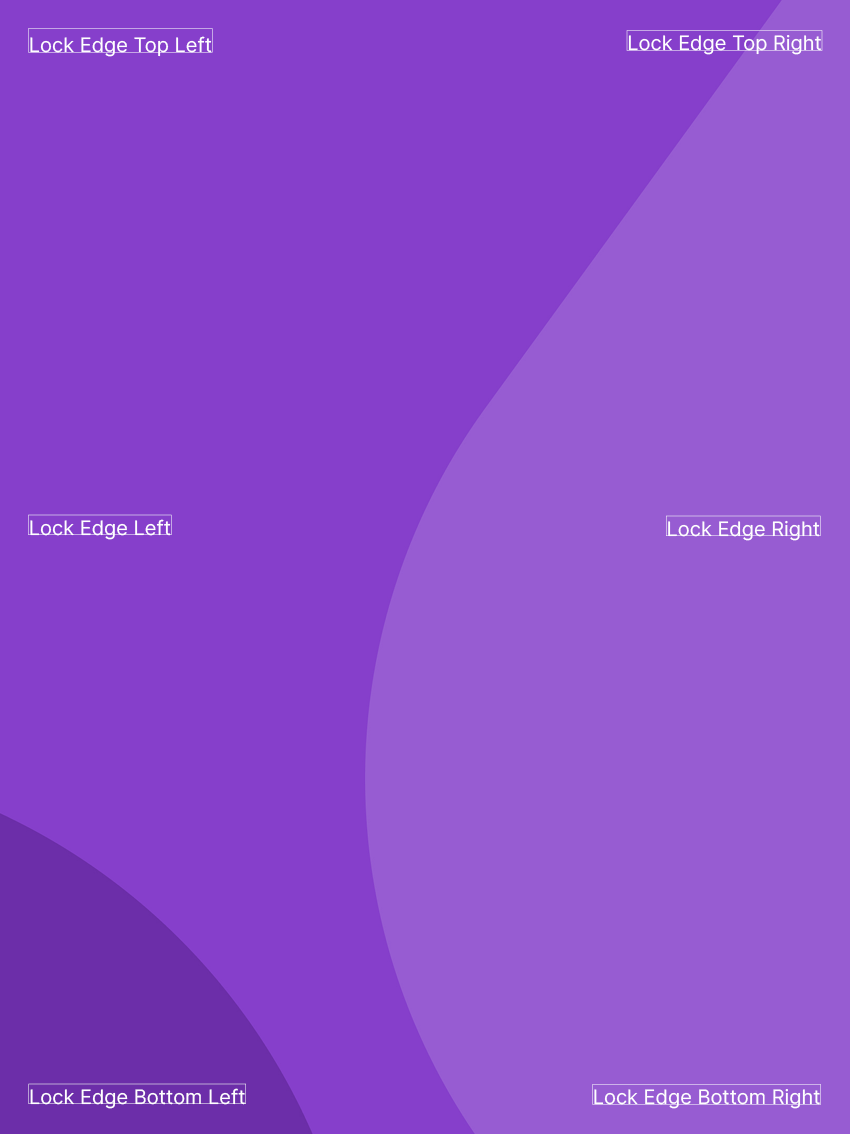

Use Lock Edge to position content
- Open the Pages Items Panel (CreateTOTALLY > Pages Items Panel) and select the text on the page you wish to align.
- Click the New button at the bottom of the Pages Item Panel to open the Tags dialog box.
- Choose Behaviour > Lock Edge.
- Use the checkboxes to select the following options: Top, Top Left, Top Right, Bottom, Bottom Left, and Bottom Right.
- Click the OK button to save your Tags and close Tags dialog box.
