Welcome to this series of tutorials, which teaches you the basic tools and techniques of StudioCraft for InDesign. This tutorial introduces you to Text Tagging - Alignment
Get files Sample file to practice with (ZIP, 29.9 MB)
| Option | Tagged element | Selected Element | Description | |
| Vertical | Top | Top | Element name | Aligns the top of the selected text box to the top of the selected element on the vertical edge |
| Middle | Middle | Element name | Aligns the middle of the selected text box to the middle of the selected element on the vertical edge | |
| Bottom | Bottom | Element name | Aligns the bottom of the selected text box to the bottom of the selected element on the vertical edge | |
| Horizontal | Left | Right | Element name | Aligns the left of the selected text box to the right of the selected element on the horizontal edge (e.g. |
| Centre | Centre | Element name | Aligns the centre of the selected text box to the centre of the selected element on the horizontal edge | |
| Right | Left | Element name | Aligns the right of the selected text box to the left of the selected element on the horizontal edge |
What you learned: How to align content to another object

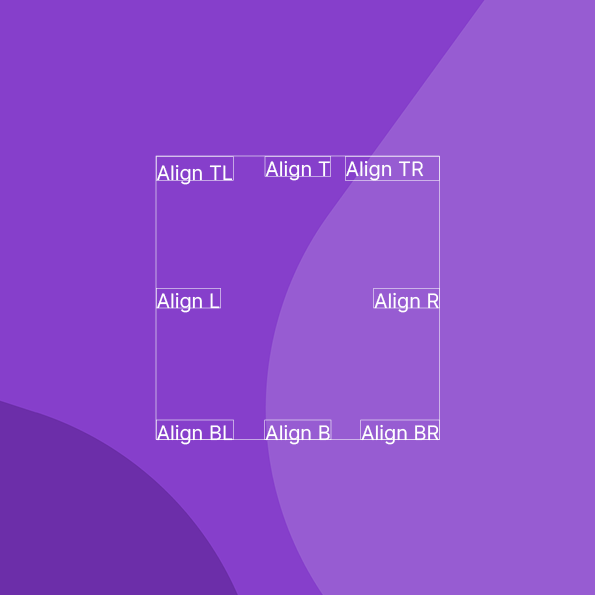

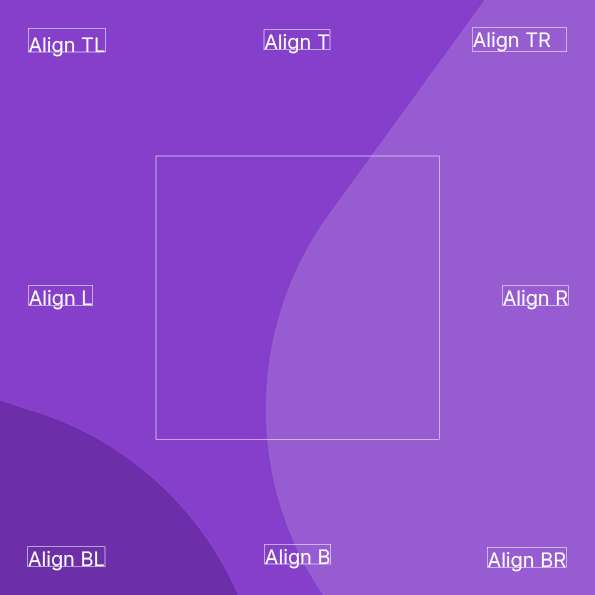

Learn how to align horizontally or vertically selected text to another object such as a logo by using the Alignment tagging.
Use object to align content
- Open the Pages Items Panel (CreateTOTALLY > Pages Items Panel) and select the text on the page you wish to align.
- Click the New button at the bottom of the Pages Item Panel to open the Tags dialog box.

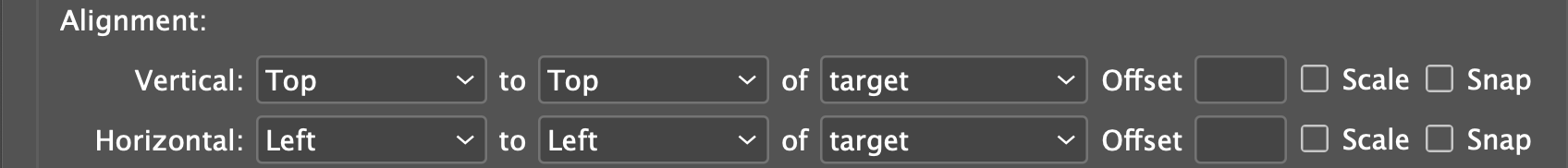

- Choose Alignment > Vertical.
- Select from the dropdown the following vertical options: Top, Middle, Bottom of select text frame and align to image or text frame of another object.
- Choose Alignment > horizontal.
- Select from the dropdown the following horizontal options: Left, Centre, Right of select text frame and align to image or text frame of another object.
- Click the OK button to save your Tags and close Tags dialog box.
